Pneumatic marine air horn foghorn
DHR 307Hz Marine Horn

Marine air horn with a medium tone (307Hz). This pneumatic horn is often used as a shipping horn.

Default delivery time

2-4 work days

€ 250,00
Price per unit



Quantity:
Order

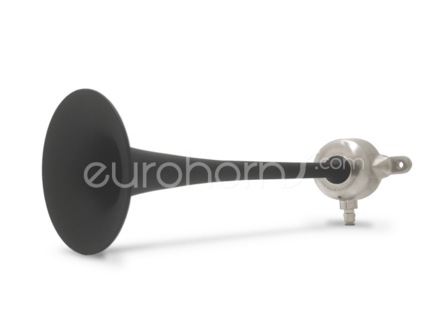

H220 307Hz Marine Horn

Pneumatic air horn which is often used as marine horn.
Brass horn painted matt black. The membrane housing
is made from stainless steel 316.


DHR Shippinghorn H220

please find the pdf-brochure in "Attachments"
Material chrome-plated brass (horn), stainles steel (housing)
Length 45cm
Diameter trumpet (Ø) 13cm
Sound Pressure dB(A) 116dB - 138dB
Frequency 307Hz
Air consumption 1,5l/s - 3,5l/s
Pressure 1,5bar - 10bar
DHR code H220


Delivery includes

- DHR H220
- 1x Ø8mm PTC inlet connection


Please note:
For this air horn you will need a separate air compressor or
"on board" air supply in combination with (solenoid-)valve.
