H200-H210 Train Horn Set

H200-H210 Train Horn Set

The so-called "train air horn set". This is the sound you definitely do
not want to hear close to a railway (station). Hearing this double tone,
would mean you're to close too a train.....not good....

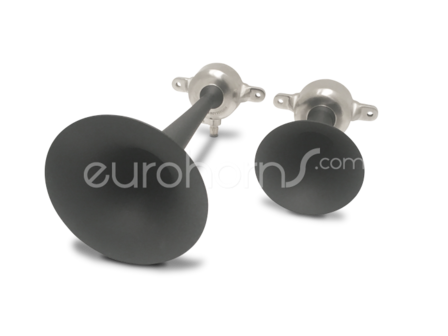

The set combines a 660Hz and a 377Hz pneumatic horn that is often
sed in European trains. Chrome-plated brass horn painted matt black
with stainless steel 316 membrane housing


DHR Hornkit

please find the pdf-brochure in "Attachments"

Set content	2x matt black horn
Material	chrome-plated brass (horn), stainles steel (housing)
Length	38,7cm & 19,8cm
Diameter trumpet (Ø)	16cm & 13cm
Sound Pressure dB(A)	116dB
Frequency	377Hz & 660Hz
Air consumption	1,5l/s - 3,5l/s 2l/s - 3,5l/s
Pressure	1,5bar - 10bar 2bar - 10bar
DHR code	H200 & H210

Delivery includes

- DHR Train set:
  1x H200
  1x H210
- 1x Ø8mm PTC inlet connection


Please note:
For this air horn you will need a separate air compressor or
"on board" air supply in combination with 1 or 2 (solenoid-)valve.
